TYPE 31L / L1 GAS-LIQUID SEPARATORS

Droplet separators 99% efficient for droplets >10 microns

Submit your process data (flow rate, pressure, temperature, gas composition) using our Inquiry Form for same-business-day sizing, pricing and lead time.
Or call 908.362.9981 to speak with a sales engineer.

Download 31L / L1 separator specifications PDF   31L (L1) Separator Specifications



Fully welded pressure vessel fabricated to ASME Code Section VIII Division 1 with stamp. No serviceable or moving components — requires zero maintenance.

Separates entrained droplets and particles larger than 10 microns in diameter with 99% efficiency.



Horizontal installation: Maximum separation rate is equivalent to 5% of its maximum rated mass flow capacity and will not separate liquid slugs.


Vertical installation (downward flow): Maximum separation rate is equivalent to 20% of its maximum rated mass flow capacity and will separate liquid slugs.



The required separator size is determined by vessel length and diameter, not necessarily by the pipeline size. Nozzles are sized to match the pipeline into which the separator is installed.



Typically manufactured from pipe; can also be fabricated from rolled plate. Standard materials are carbon steel, 304L stainless steel and 316L stainless steel. Other alloys are available when required. Common customizations include support legs, additional ports and non-flanged connections.

Type 31L / L1 centrifugal gas-liquid separator drawing showing internal vortex design

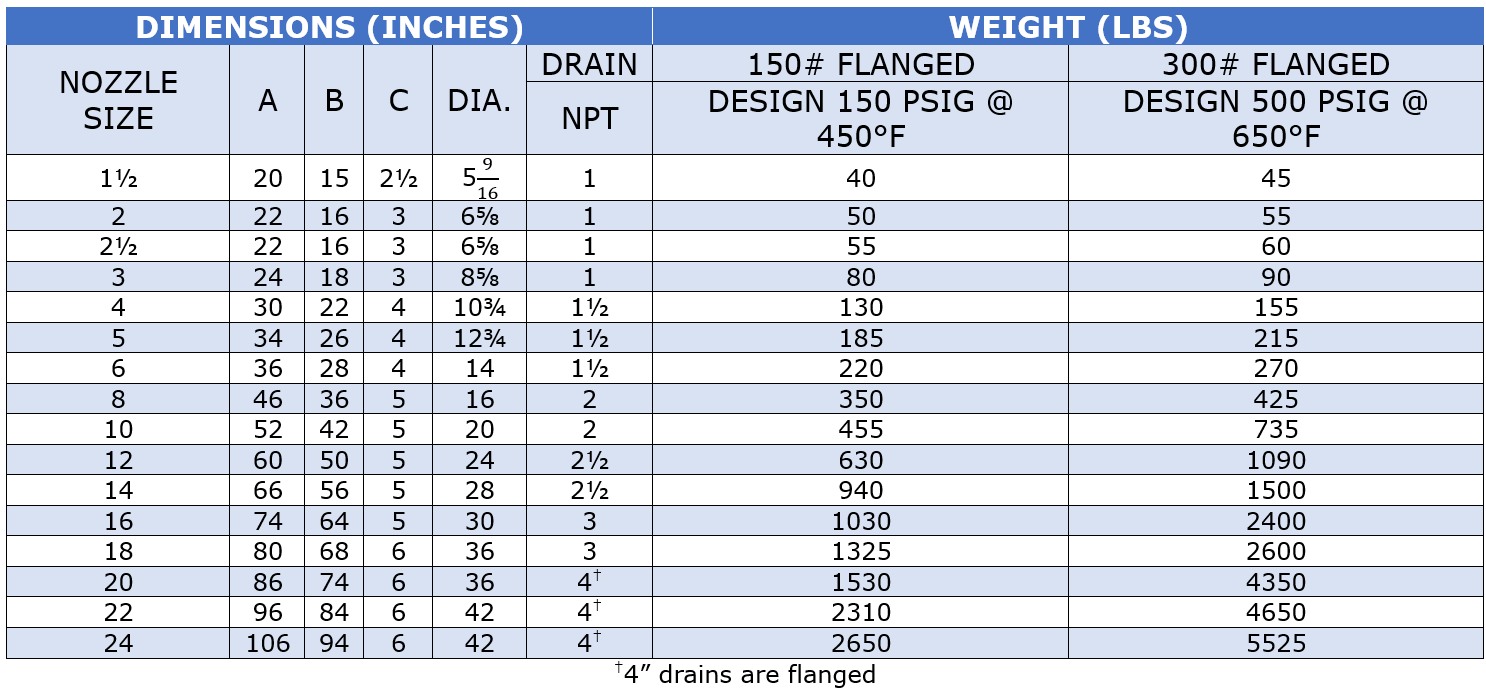

DIMENSIONS (INCHES) WEIGHT (LBS)
NOZZLE SIZE A B C DIA. DRAIN
NPT		 150# FLANGED
DESIGN 150 PSIG @ 450°F		 300# FLANGED
DESIGN 500 PSIG @ 650°F
1½ 20 15 2½ 59⁄16 1 40 45
2 22 16 3 65⁄8 1 50 55
2½ 22 16 3 65⁄8 1 55 60
3 24 18 3 85⁄8 1 80 90
4 30 22 4 10¾ 1½ 130 155
5 34 26 4 12¾ 1½ 185 215
6 36 28 4 14 1½ 220 270
8 46 36 5 16 2 350 425
10 52 42 5 20 2 455 735
12 60 50 5 24 2½ 630 1090
14 66 56 5 28 2½ 940 1500
16 74 64 5 30 3 1030 2400
18 80 68 6 36 3 1325 2600
20 86 74 6 36 4† 1530 4350
22 96 84 6 42 4† 2310 4650
24 106 94 6 42 4† 2650 5525

†4″ drains are flanged

Need a different material, extra ports, or confirmation of size for your exact conditions?
Use our Inquiry Form or call 908.362.9981 — we reply the same business day.
